Description

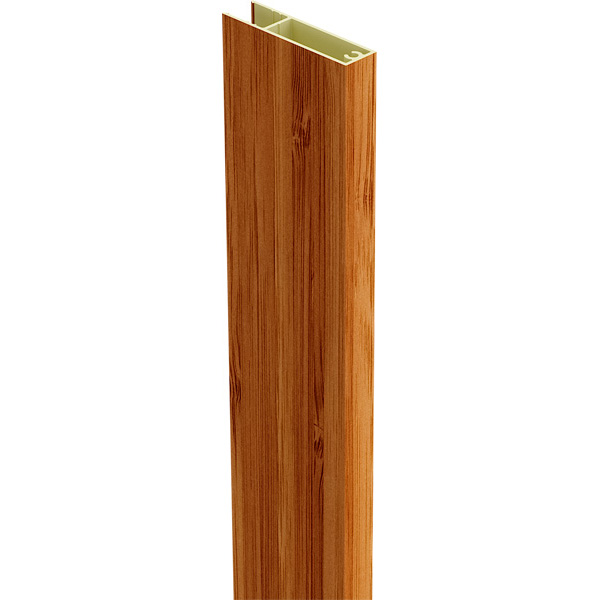

The Nexia 65mm x 16mm Aluminium Batten is a slimline
rectangular-profile aluminium batten designed for clean, modern screening and
architectural feature applications. Its narrow 16mm depth and 65mm face create a
refined linear appearance, making it ideal for projects where a sleek, low-profile
batten look is preferred.
This batten is suitable for privacy screens, aluminium batten fencing, garden
screening, balcony screens, feature walls and facade details where a slim
architectural finish is required.
As part of the Nexia Aluminium Batten System, this batten is
designed for a concealed-fixing installation. The matching fixing clip is secured
to the supporting surface, allowing the batten front to be installed neatly without
welding. This creates a clean professional finish while keeping installation
practical and efficient.
Made from 6060-T5 aluminium, the batten is lightweight, rust-free
and suitable for outdoor use. Aluminium provides a low-maintenance alternative to
timber, with no ongoing painting, staining or sealing required when using a finished
powder coated or timber-look option.
The batten is supplied in 6100mm lengths and can be cut to size to
suit your project requirements.
Available Finishes
- Black Satin
- Monument Matt
- Pearl White Gloss
- Western Red Cedar Timber Look
- Alpine Ash Timber Look
- Mill Finish
Compatible Component
Compatible with:
Nexia 21mm x 16mm Aluminium Fixing Clip
–
NBAT-6100-FIX16
Technical Specifications

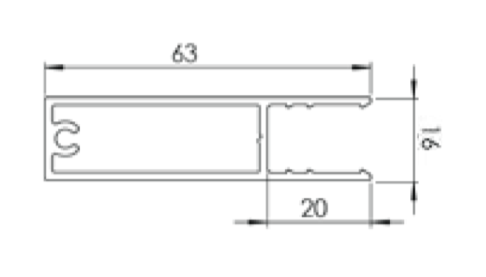

- Profile size: 65mm x 16mm
- Length: 6100mm
- Order code / SKU: NBAT-6100-65X16
- Alloy: 6060-T5
- PP: 142
- AP: 199
- Ixx: 10.55 x 10E3 mmE4
- Iyy: 92.80 x 10E3 mmE4
- Screw flutes: 1 x Ø3.7mm
Suitable Applications
- Privacy screens
- Aluminium batten fencing
- Garden screening
- Balcony screening
- Facade features
- Feature walls
- Pergola and patio screens
- Commercial architectural screening
For a slimline aluminium batten with a clean architectural appearance, the Nexia
65mm x 16mm batten is a practical and low-maintenance option for modern screening,
fencing and feature applications.
