Pool Gate Hinges & Latches

Pool gate hinges and latches keep your glass pool gate safe and compliant: every hinge set here is self-closing and every latch kit is made for frameless glass gates. Choose glass-to-glass, glass-to-wall or glass-to-post fittings in duplex stainless steel, in four finishes.

  • Atlantic 530 soft close pool gate hinges: premium soft close, pool compliant glass pool fence hinges in 2205 stainless steel for 10mm and 12mm glass gates up to 70kg.

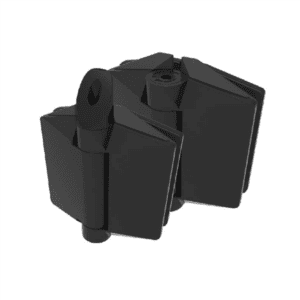

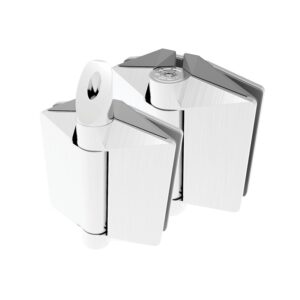

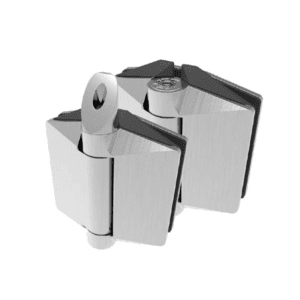

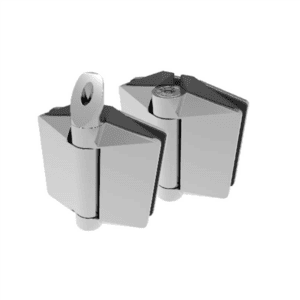

  • Polaris 125 and 155 Series hinges: glass-to-glass, glass-to-wall and glass-to-post hinge sets with matching backing plates.
  • Master Range hinges: 180 degree glass-to-glass, glass-to-wall, round post and face mount hinge sets.
  • Gate latch kits: glass-to-glass 180 degree, internal and external 90 degree, glass-to-wall or post, and side pull latches.
  • Shop by finish: polish, satin, matt black or matt white.

Not sure which hinge or latch fits your gate? See What to order below, or call us on 1300 915 098.

Pool gate rules your hinges and latch must meet

  • The gate must open away from the pool.
  • It must self-close and self-latch from any open position, including when it’s only slightly open.
  • The latch must sit at least 1500mm above the ground.
  • Gaps around the gate, including at the hinge side, must stay within AS 1926.1 limits.

Which pool gate hinges do I need?

Hinge typeFixesUse it when
Glass to glassGate to a glass hinge panelYour gate sits between glass panels (the most common frameless layout)
Glass to wallGate to a wall or square postThe gate hangs off a wall, pillar or square post
Glass to round or square postGate to a stainless steel post (with backing plates)You’re hanging the gate off a post, such as an SQ50 post
Face mountGate to the face of a wall or postThere’s no room to fix to the side of the wall or post

Soft close or standard? Both are self-closing. Soft close pool gate hinges, like the Atlantic 530, slows the gate before it closes so it doesn’t slam, while still latching every time.

Which gate latch do I need?

Latch kitUse it when
Glass to glass 180 degreeThe gate closes onto a glass panel in a straight line
Glass to glass internal or external 90 degreeThe gate closes onto a glass panel at a corner
Glass to wall or square postThe gate closes onto a wall or square post
Side pull glass to postYou want a side pull latch onto a post

What to order for a glass pool gate

  1. A glass pool gate and, for a glass-to-glass gate, a matching hinge panel. See glass pool gates and hinge panels.
  2. One hinge set to suit what the gate hangs from: glass, wall or post. Check the hinge suits your glass thickness and gate weight.
  3. One latch kit to suit what the gate closes onto, and the angle.
  4. Backing plates if you’re fixing to a round or square post.
  5. The same finish throughout, matched to your spigots and clamps.

Frequently asked questions

Are these glass pool fence hinges compliant?

Yes. The hinge sets are pool compliant self-closing hinges. Installed correctly with a compliant latch, your glass gate will self-close and self-latch as AS 1926.1 requires.

What’s the difference between glass to glass and glass to wall hinges?

Glass to glass hinges join the gate to a glass hinge panel. Glass to wall hinges fix the gate to a wall, pillar or square post.

Do soft close hinges still meet pool rules?

Yes. Soft close hinges such as the Atlantic 530 are self-closing pool gate hinges. They just slow the gate near the end so it closes gently and quietly before latching.

How high does a pool gate latch need to be?

Under AS 1926.1 the latch must be at least 1500mm above the ground, so young children can’t reach it.

How heavy a glass gate can the hinges hold?

It depends on the hinge. For example, the Atlantic 530 soft close hinge suits 10mm and 12mm glass gates up to 70kg. Check each product listing for its limits.

Can I match my hinges to my spigots?

Yes. Hinges and latches come in polish, satin, matt black and matt white, so you can match your pool fence spigots and clamps.
