Description
with all Nexia XX x 30mm aluminium battens. It forms part of the
Nexia no-weld aluminium batten system and provides the concealed fixing support
required for 30mm-depth batten installations.
Once the back clip is fixed to the supporting surface, the compatible Nexia batten
front can snap neatly into place without welding. This helps create a clean,
professional architectural finish while keeping installation practical and efficient.
Made from 6060-T5 aluminium, the clip is lightweight, rust-free
and suitable for outdoor use. Aluminium provides long-term durability and low
maintenance, making it ideal for exterior privacy screens, batten fencing, facade
features and architectural screening applications.
The back clip is supplied in 6100mm lengths and can be cut to size
to suit your project requirements.
Available Finishes
- Black Satin
- Monument Matt
- Pearl White Gloss

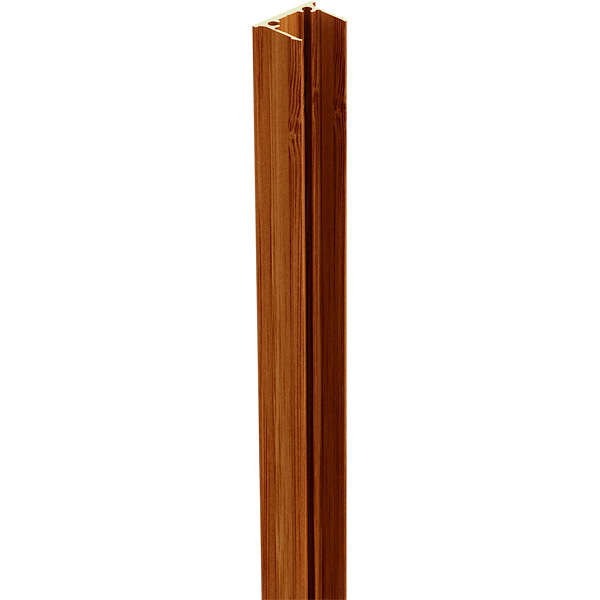

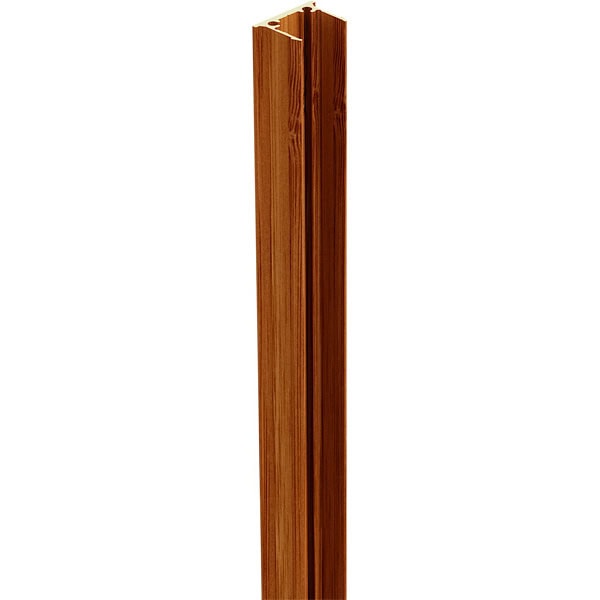

- Western Red Cedar Timber Look
- Alpine Ash Timber Look
- Mill Finish
Compatible Components
Compatible with:
All Nexia XX x 30mm aluminium battens
–
30mm-depth batten profiles
Installation Note
For fixing this clip to concrete, consider a Tapper+ fastener
1-1/4″ x 3/16″ or an equivalent style of concrete fastening
screw. The screw head must not protrude past the clip edge, as this may interfere
with the batten front snapping onto the clip.
Technical Specifications

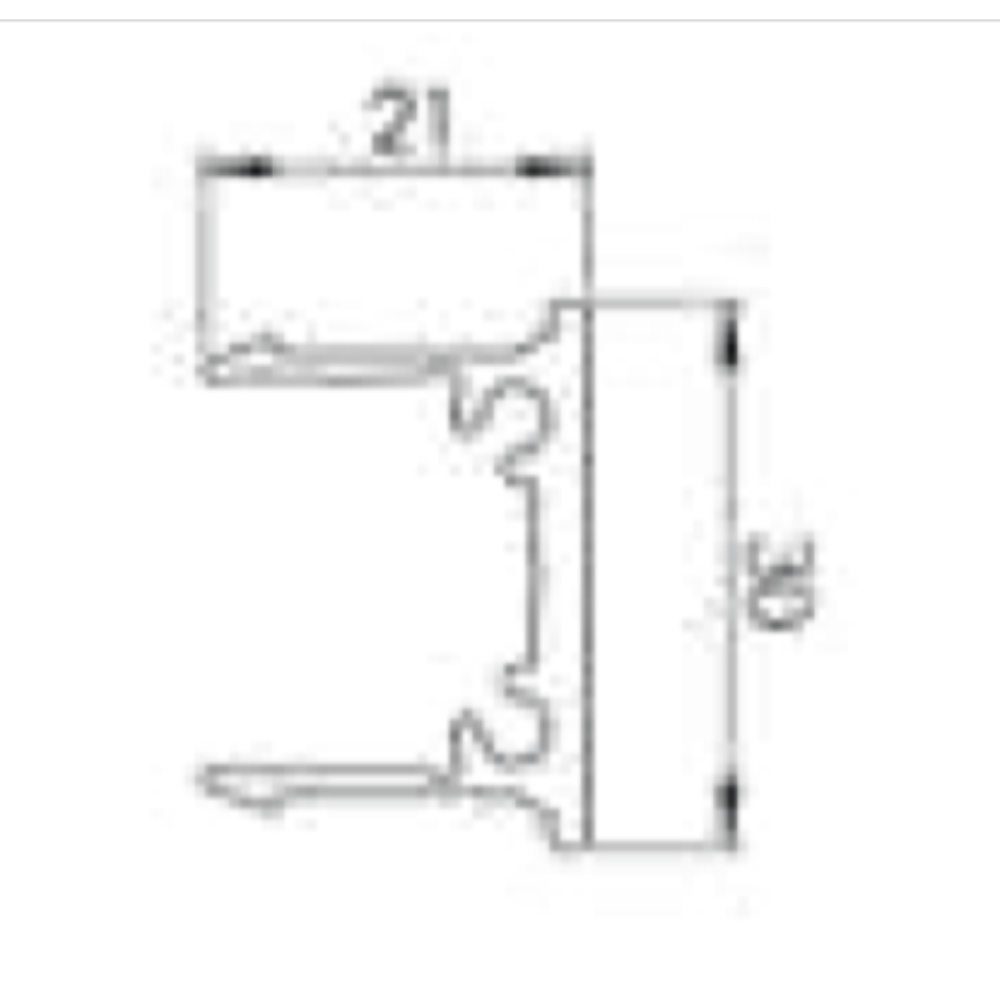

- Profile size: 21mm x 30mm
- Length: 6100mm
- Order code / SKU: NBAT-6100-CLIP30
- Compatible battens: All Nexia XX x 30mm battens
- Alloy: 6060-T5
- PP: 100
- AP: 150
- Ixx: 4.92 x 10E3 mmE4
- Iyy: 13.40 x 10E3 mmE4
- Screw flutes: 2 x Ø3.7mm
Suitable Applications
- 30mm-depth Nexia batten installations
- Privacy screens
- Aluminium batten fencing
- Garden screening
- Balcony screening
- Facade features
- Feature walls
- Commercial architectural screening
For Nexia 30mm-depth batten installations, the Nexia 21mm x 30mm aluminium back
clip provides the correct concealed fixing support for a clean, durable and
professional finish.
