Description
curved profile with the clean lines and low-maintenance performance of aluminium.
Its distinctive radius face provides a softer architectural appearance than
traditional square or rectangular battens, making it ideal for contemporary
screening, fencing and feature applications.Supplied in 6100mm lengths, the batten is manufactured from
6060-T5 aluminium and incorporates an integrated rear fixing profile designed to
mate with the compatible Nexia 30mm fixing clip. This concealed fixing system
allows the batten face to remain clean and uninterrupted once installed.The radius profile can be used vertically or horizontally to create architectural
screens, feature walls, facades and decorative fencing. A selection of powder
coated and timber-look finishes allows the system to complement a wide variety of
residential and commercial designs.
Available Finishes
- Black – GN150A
- Monument – GL229A
- White – GA078A
- Western Red Cedar Timber Look
- Alpine Ash Timber Look
- Mill Finish
Custom powder coating and timber-look finishes may also be available for project
requirements.
Compatible Component
Compatible with:
Nexia 30mm Fixing Clip
Technical Specifications
- Profile: 60mm x 30mm Radius Batten
- Length: 6100mm
- Material: Aluminium
- Alloy: 6060-T5
- Overall Profile Width: Approximately 58mm
- Profile Depth: 30mm
- Screw Flutes: 2 x Ø3.7mm
- Ixx: 72.43 x 10³ mm⁴
- Iyy: 40.98 x 10³ mm⁴
Suitable Applications
- Architectural screening
- Privacy screens
- Aluminium batten fencing
- Feature walls
- Building facades
- Entry and landscape features
- Pergola and outdoor screening
- Residential and commercial projects

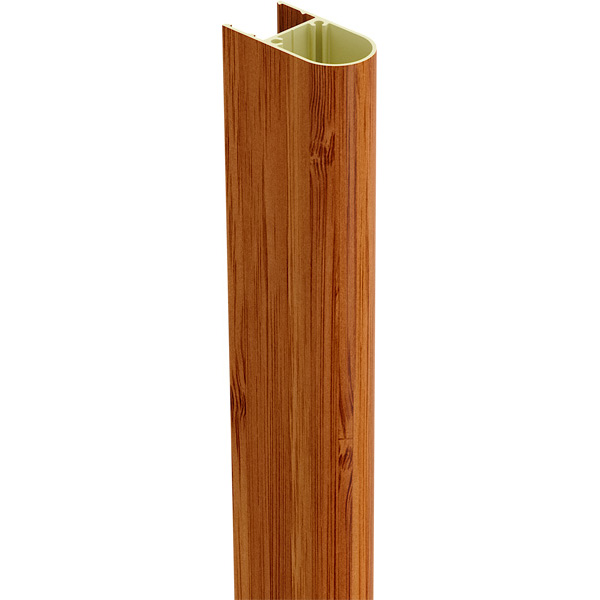

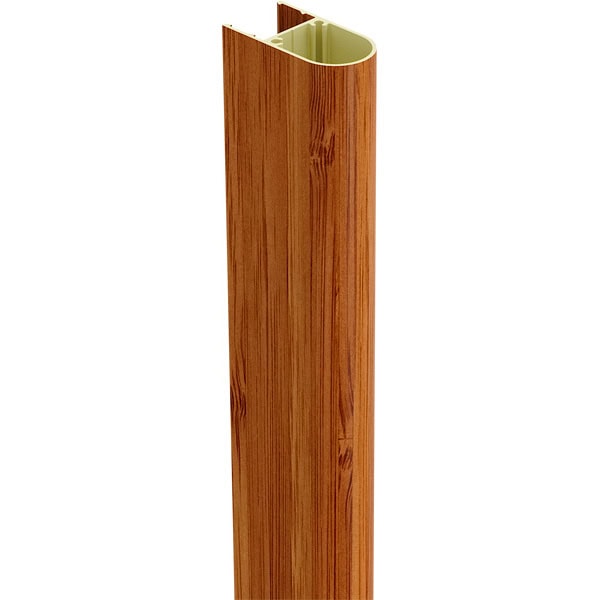

The Nexia 60mm x 30mm Radius Aluminium Batten provides a distinctive alternative
to conventional square batten profiles, combining a refined curved appearance
with durable aluminium construction and a concealed fixing system.
