Description
The Nexia 21mm x 16mm Aluminium Fixing Clip is designed
specifically for use with the Nexia 65mm x 16mm Aluminium Batten.
It forms part of the Nexia no-weld aluminium batten system and provides the
concealed fixing support required for slimline 65mm x 16mm batten installations.
This fixing clip is suitable for residential and commercial screening projects
where a clean, concealed-fixing appearance is required. Once the clip is fixed to
the supporting surface, the matching 65mm x 16mm batten can be installed neatly
as part of the Nexia batten system.
Made from 6060-T5 aluminium, the clip is lightweight, rust-free
and suitable for outdoor use. Aluminium provides long-term durability and low
maintenance, making it ideal for exterior privacy screens, batten fencing, facade
features and architectural screening applications.
The fixing clip is supplied in 6100mm lengths and can be cut to
size to suit your project requirements.
Available Finishes
- Black Satin
- Monument Matt
- Pearl White Gloss
- Western Red Cedar Timber Look
- Alpine Ash Timber Look
- Mill Finish
Compatible Component
Compatible with:
Nexia 65mm x 16mm Aluminium Batten
–
NBAT-6100-65X16
Technical Specifications

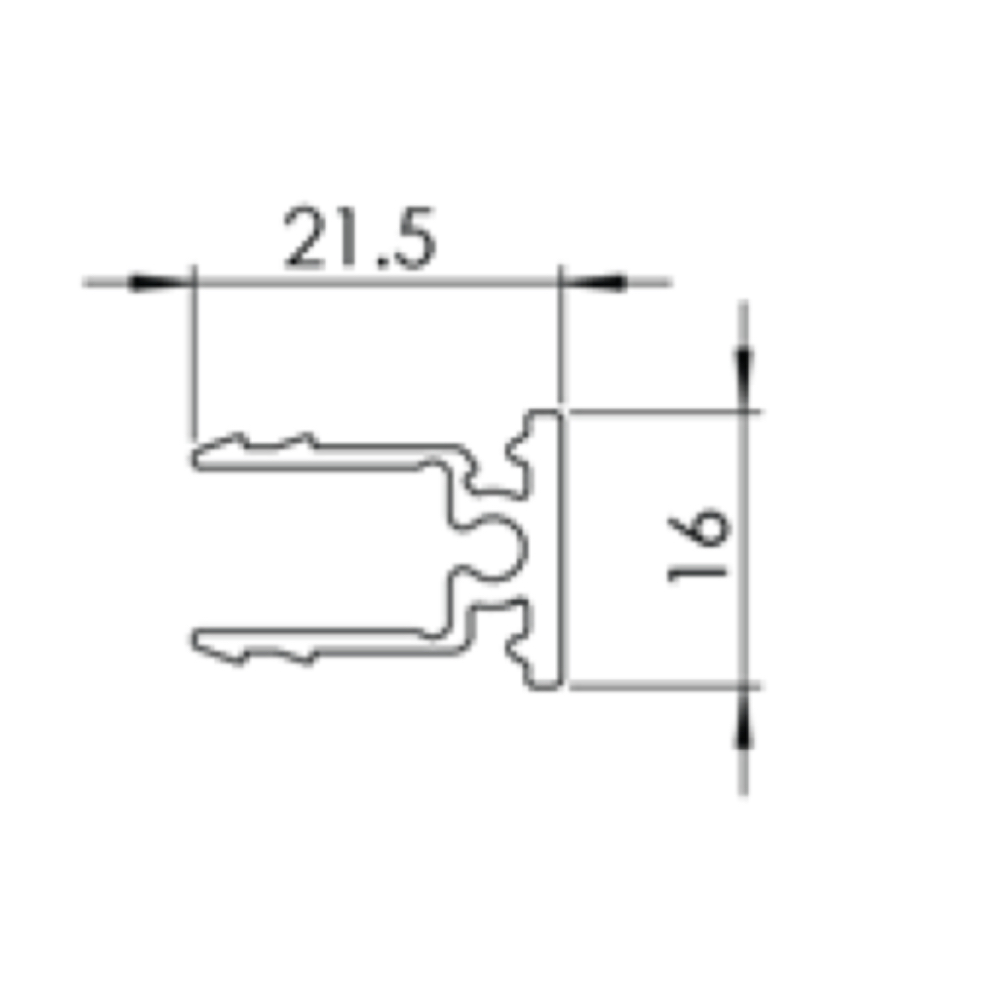

- Profile size: 21mm x 16mm
- Length: 6100mm
- Order code / SKU: NBAT-6100-FIX16
- Alloy: 6060-T5
- PP: 100
- AP: 127
- Ixx: 2.14 x 10E3 mmE4
- Iyy: 4.10 x 10E3 mmE4
- Screw flutes: 1 x Ø3.7mm
Suitable Applications
- 65mm x 16mm Nexia batten installations
- Privacy screens
- Aluminium batten fencing
- Garden screening
- Balcony screening
- Facade features
- Feature walls
- Commercial architectural screening
For slimline 65mm x 16mm Nexia batten installations, the Nexia 21mm x 16mm
aluminium fixing clip provides the correct concealed-fixing support for a clean,
durable and professional finish.
