Description
square-profile aluminium batten suitable for residential and commercial screening
projects. Its compact 30mm x 30mm profile makes it a popular choice for privacy
screens, garden screening, batten fencing, balcony screens, feature walls and
architectural facade details.As part of the Nexia Aluminium Batten System, this batten is
designed for a concealed-fixing installation. The matching back clip is fixed to
the supporting surface, allowing the batten front to snap neatly into place without
welding. This creates a professional architectural finish while keeping installation
practical and efficient.Made from 6060-T5 aluminium, the batten is lightweight, rust-free
and suitable for outdoor use. Aluminium provides a low-maintenance alternative to
timber, with no ongoing painting, staining or sealing required when using a finished
powder coated or timber-look option.
The batten is supplied in 6100mm lengths and can be cut to size to
suit your project requirements.
Available Finishes
- Black Satin
- Monument Matt
- Pearl White Gloss

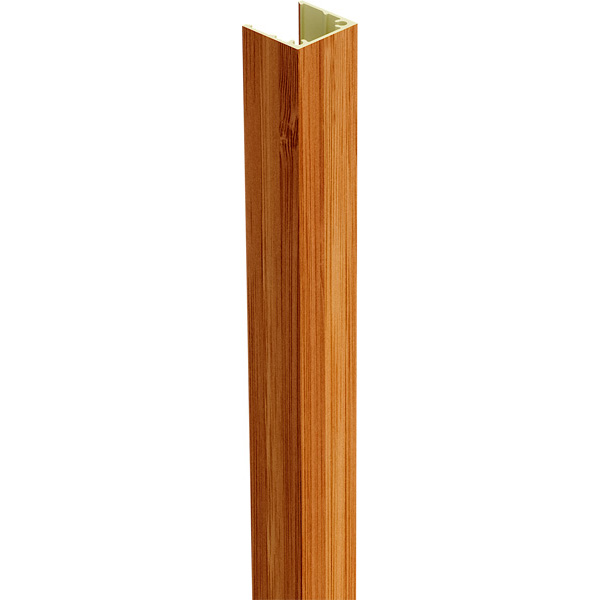

- Western Red Cedar Timber Look
- Alpine Ash Timber Look
- Mill Finish
Compatible Component
Compatible with: Nexia 21mm x 30mm Aluminium Back Clip
Technical Specifications
- Profile size: 30mm x 30mm
- Length: 6100mm
- Order code / SKU: NBAT-6100-30X30
- Alloy: 6060-T5
- PP: 126
- AP: 189
- Ixx: 12.77 x 10E3 mmE4
- Iyy: 24.95 x 10E3 mmE4
- Screw flutes: 2 x Ø3.7mm
Suitable Applications
- Privacy screens
- Aluminium batten fencing
- Garden screening
- Balcony screening
- Facade features
- Feature walls
- Pergola and patio screens
- Commercial architectural screening
For a slim square aluminium batten with a clean architectural look, the Nexia
30mm x 30mm batten is a practical and low-maintenance option for modern screening,
fencing and feature applications.
