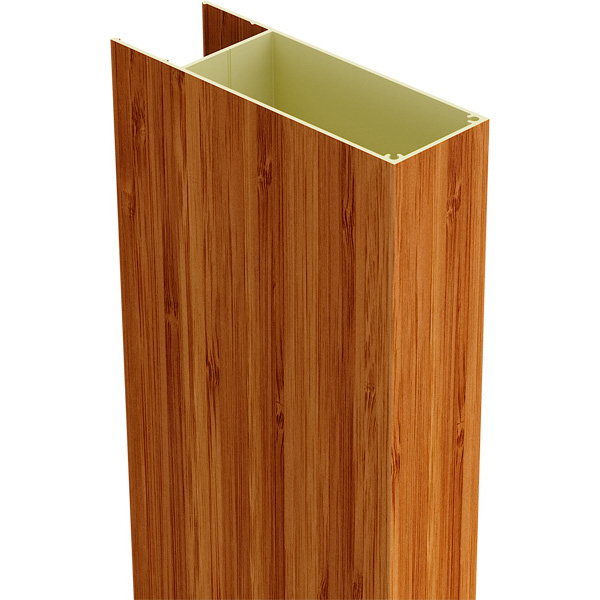

Description
rectangular-profile aluminium batten designed for projects requiring a bold,
substantial architectural finish. Its wide 150mm x 50mm profile creates strong
visual impact, making it ideal for feature screens, fencing, facades and commercial
architectural applications.This batten is well suited to privacy screens, aluminium batten fencing, garden
screening, balcony screens, feature walls and facade details where a larger profile
and more prominent design statement is preferred.As part of the Nexia Aluminium Batten System, this batten is
designed for a concealed-fixing installation. The matching back clip is fixed to
the supporting surface, allowing the batten front to snap neatly into place without
welding. This creates a clean professional finish while keeping installation
practical and efficient.Made from 6060-T5 aluminium, the batten is lightweight, rust-free
and suitable for outdoor use. Aluminium provides a low-maintenance alternative to
timber, with no ongoing painting, staining or sealing required when using a finished
powder coated or timber-look option.The batten is supplied in 6100mm lengths and can be cut to size to
suit your project requirements.
Available Finishes
- Black Satin
- Monument Matt
- Pearl White Gloss
- Western Red Cedar Timber Look
- Alpine Ash Timber Look
- Mill Finish
Compatible Component
- Suitable back clip: Nexia – 36mm x 50mm Aluminium Fixing Clip – 6100mm

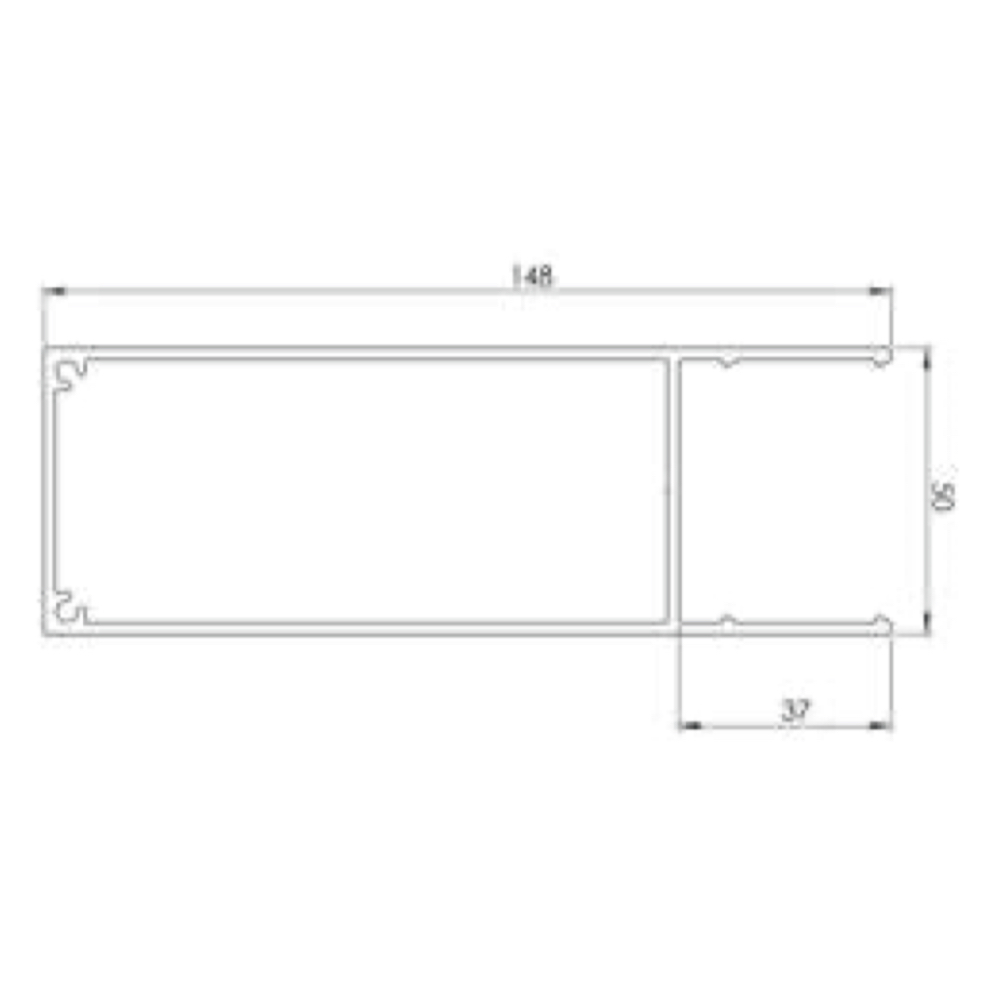

Technical Specifications
- Profile size: 150mm x 50mm
- Length: 6100mm
- Alloy: 6060-T5
- PP: 346
- AP: 474
- Ixx: 1793.60 x 10E3 mmE4
- Iyy: 386.36 x 10E3 mmE4
- Screw flutes: 2 x Ø3.7mm
Suitable Applications
- Privacy screens
- Aluminium batten fencing
- Garden screening
- Balcony screening
- Facade features
- Feature walls
- Pergola and patio screens
- Commercial architectural screening
For a large aluminium batten with a bold architectural appearance, the Nexia
150mm x 50mm batten is a practical and low-maintenance option for modern screening,
fencing and feature applications.
