Description
square-profile aluminium batten suitable for residential and commercial screening
projects. Its 50mm x 50mm profile provides a balanced architectural look, making
it a versatile option for privacy screens, batten fencing, garden screening,
balcony screens, feature walls and facade details.With its larger square profile, this batten offers a more substantial appearance
than smaller battens while still maintaining clean, modern lines. It is well suited
to projects where strength, visual impact and low-maintenance performance are
important.As part of the Nexia Aluminium Batten System, this batten is
designed for a concealed-fixing installation. The matching back clip is fixed to
the supporting surface, allowing the batten front to snap neatly into place without
welding. This creates a professional architectural finish while keeping installation
practical and efficient.Made from 6060-T5 aluminium, the batten is lightweight, rust-free
and suitable for outdoor use. Aluminium provides a low-maintenance alternative to
timber, with no ongoing painting, staining or sealing required when using a finished
powder coated or timber-look option.The batten is supplied in 6100mm lengths and can be cut to size to
suit your project requirements.
Available Finishes
- Black Satin
- Monument Matt
- Pearl White Gloss

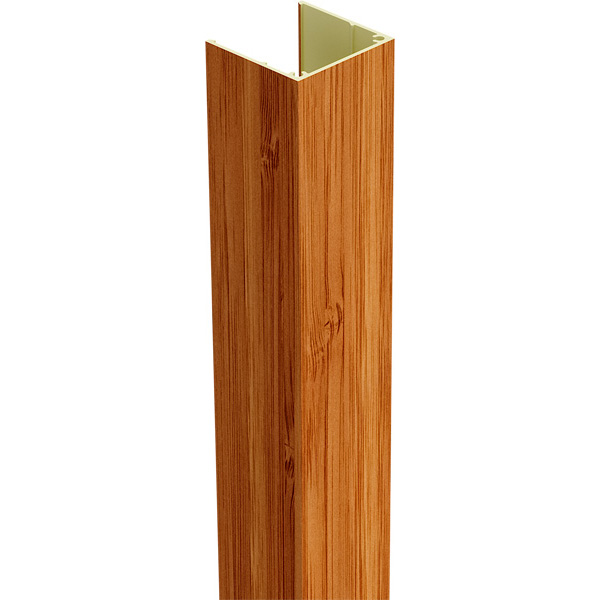

- Western Red Cedar Timber Look
- Alpine Ash Timber Look
- Mill Finish
Compatible Component
- Suitable back clip: Nexia – 36mm x 50mm Aluminium Fixing Clip – 6100mm
Technical Specifications

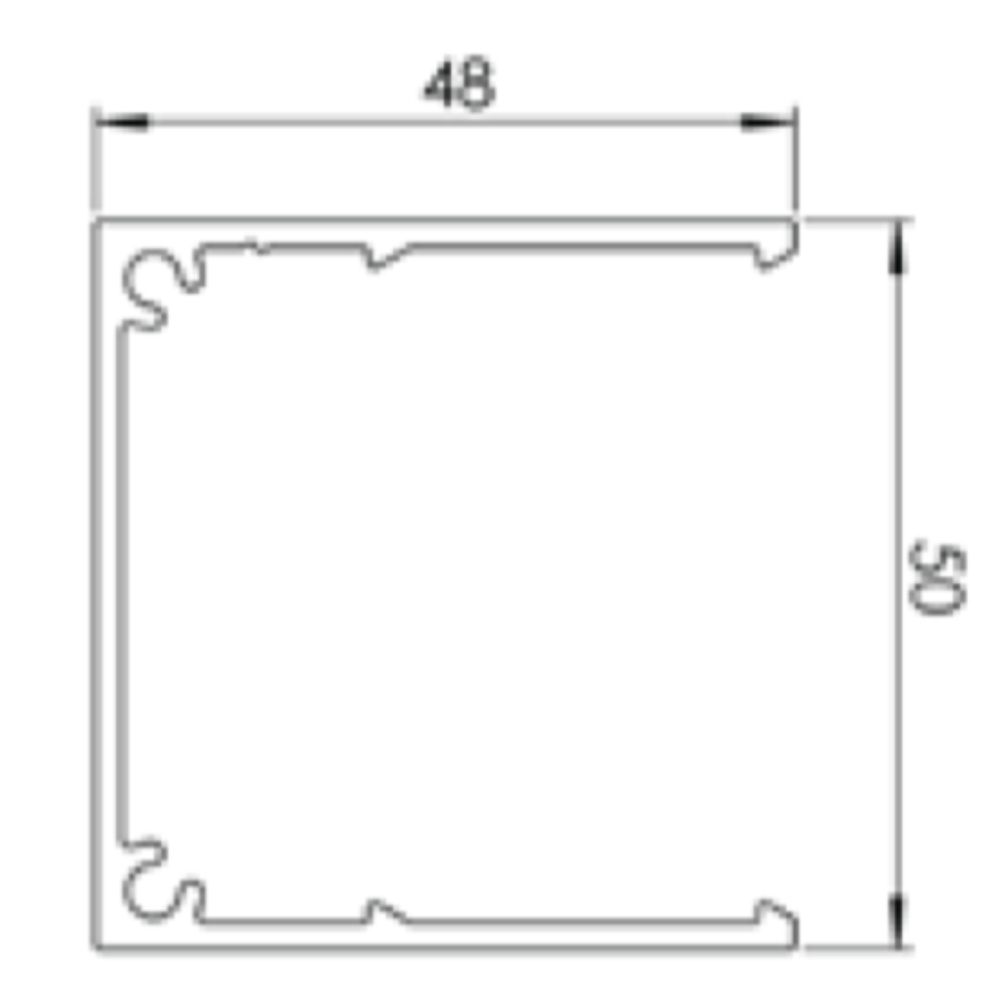

- Profile size: 50mm x 50mm
- Length: 6100mm
- Alloy: 6060-T5
- PP: 205
- AP: 307
- Ixx: 71.15 x 10E3 mmE4
- Iyy: 130.96 x 10E3 mmE4
- Screw flutes: 2 x Ø3.7mm
Suitable Applications
- Privacy screens
- Aluminium batten fencing
- Garden screening
- Balcony screening
- Facade features
- Feature walls
- Pergola and patio screens
- Commercial architectural screening
For a strong square aluminium batten with a clean architectural appearance, the
Nexia 50mm x 50mm batten is a practical and low-maintenance option for modern
screening, fencing and feature applications.
