Description
rectangular-profile aluminium batten suitable for residential and commercial
screening projects. Its wider 70mm face provides a stronger visual statement
than smaller batten profiles, making it ideal for projects where a more prominent
architectural look is desired.This batten is commonly used for privacy screens, garden screening, aluminium
batten fencing, balcony screens, feature walls and facade details.As part of the Nexia Aluminium Batten System, this batten is
designed for a concealed-fixing installation. The matching back clip is fixed to
the supporting surface, allowing the batten front to snap neatly into place without
welding. This creates a clean professional finish while keeping installation
practical and efficient.Made from 6060-T5 aluminium, the batten is lightweight, rust-free
and suitable for outdoor use. Aluminium provides a low-maintenance alternative to
timber, with no ongoing painting, staining or sealing required when using a finished
powder coated or timber-look option.The batten is supplied in 6100mm lengths and can be cut to size to
suit your project requirements.
Available Finishes
- Black Satin
- Monument Matt
- Pearl White Gloss

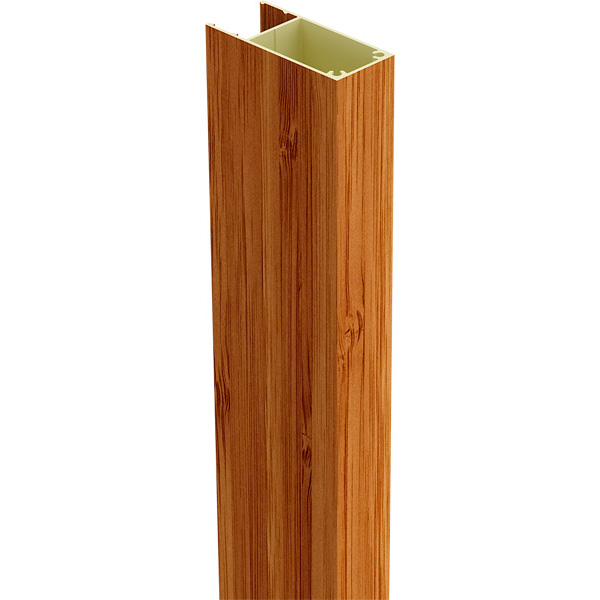

- Western Red Cedar Timber Look
- Alpine Ash Timber Look
- Mill Finish
Compatible Component
- Suitable back clip: Nexia – 21mm x 30mm Aluminium Fixing Clip – 6100mm
Technical Specifications

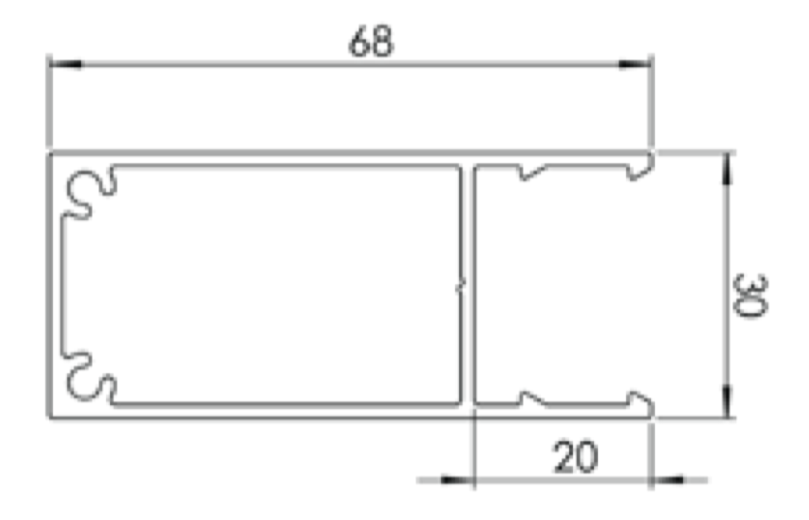

- Profile size: 70mm x 30mm
- Length: 6100mm
- Alloy: 6060-T5
- PP: 166
- AP: 241
- Ixx: 158.38 x 10E3 mmE4
- Iyy: 51.86 x 10E3 mmE4
- Screw flutes: 2 x Ø3.7mm
Suitable Applications
- Privacy screens
- Aluminium batten fencing
- Garden screening
- Balcony screening
- Facade features
- Feature walls
- Pergola and patio screens
- Commercial architectural screening
For a wider rectangular aluminium batten with a clean architectural appearance,
the Nexia 70mm x 30mm batten is a practical and low-maintenance option for modern
screening, fencing and feature applications.
