Custom-Made Nirvana Aluminium Operable Shutters
Create a more private and comfortable outdoor area with horizontal aluminium louvres that can be adjusted by hand. Nirvana shutters let you control airflow, sunlight and visibility while maintaining a clean architectural finish.
Why Choose Nirvana Shutters?
- Custom-made for finished openings from 404mm to 6,000mm wide and 500mm to 3,000mm high
- 90mm elliptical aluminium louvres operated using an inward-facing tilt rod
- Fully assembled panels for installation inside U-channel framing
- Multiple-panel layouts available for wider openings
- Choice of Pearl White Gloss or Surfmist Matt powder coat
- Corrosion-resistant, non-combustible aluminium construction
Configure Your Opening
Enter the finished inside width and height of the opening, choose your preferred colour and select whether the tilt rod sits on the left or right when viewed from inside the property looking out. The configurator recommends the minimum practical panel count and displays the approximate finished panel size.
Midrail Requirements
Panels up to 1,500mm high do not require a midrail. Openings from 1,501mm to 2,400mm include a midrail that is centred by default, with a valid custom position also available. Openings from 2,401mm to 3,000mm require the midrail at approximately the centre. Louvre sections above and below the midrail operate independently.
How to Measure
- Measure the exact inside width at the top, middle and bottom of the opening.
- Use the smallest width measurement.
- Measure the inside height at the left, centre and right.
- Use the smallest height measurement.
- Confirm at least 40mm of installation recess and check for handles or other obstructions.

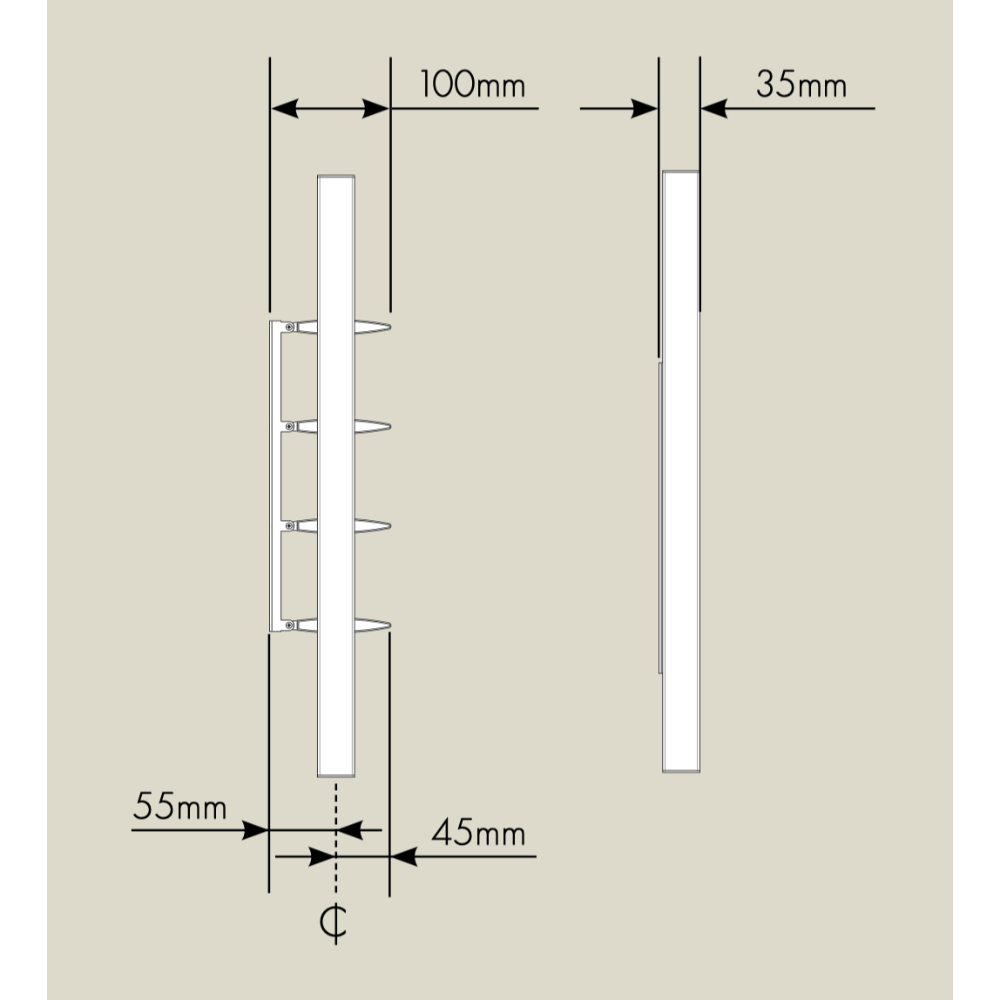

Please note: The shutters are approximately 35mm deep when closed and require approximately 100mm of clear depth when fully open, including the tilt rod. They are designed for installation within a prepared void and are not available as face-mounted, hinged or bi-fold panels.
What Is Included?
The configured shutter panels are supplied fully assembled with surrounding U channels and the required H-profile joiners for multi-panel openings. Standard production lead time is approximately 8–10 weeks from confirmed order, subject to current manufacturing schedules and freight arrangements.
Important Information
Nirvana shutters are not a balustrade or safety barrier and are not designed as a completely weatherproof wall. If project-specific wind-load certification or structural compliance is required, obtain independent engineering advice before ordering.
