Description

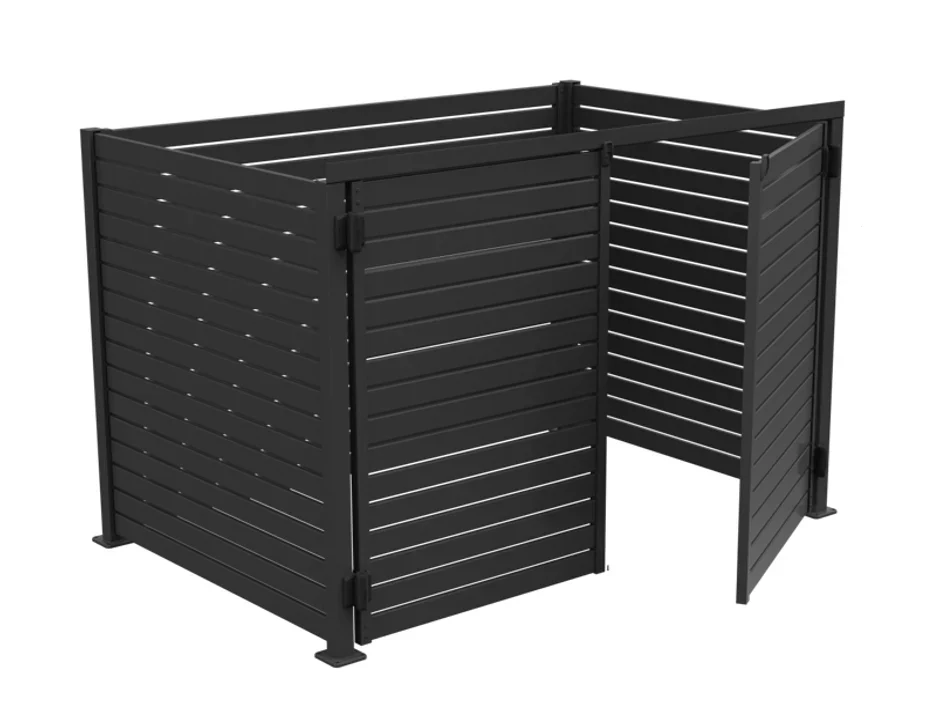

Custom Open-Top Aluminium Equipment Enclosure
Keep pool pumps, filters, air-conditioning units and other outdoor equipment neatly concealed with a custom aluminium slat equipment enclosure.
This without-lid model provides unrestricted overhead access and ventilation. It includes hinged front access doors and a slatted back panel and is supplied flat packed in your selected dimensions and finish.
Key Benefits
- Custom cut to your selected dimensions
- Open-top design for unrestricted overhead access
- Slatted back panel included
- Hinged front doors provide convenient equipment access
- 0mm, 5mm or 9mm slat gap options
- Available in nine powder-coated colours plus mill finish
- Supplied flat packed for convenient transport and handling
- Designed for assembly without welding
Configure the Enclosure to Suit Your Installation
Use the product configurator to select the dimensions and options required for your installation:
- Colour: Choose from the available powder-coated finishes or mill finish
- Slat gap: Select 0mm, 5mm or 9mm spacing
- Finished width: Enter an external finished width from 600mm to 2,500mm
- Height: Select the required enclosure height
- Finished depth: Enter an external finished depth from 500mm to 1,500mm
- Front access: Available door layouts are determined by the selected width
The configured price updates according to the dimensions and options selected, allowing you to review the complete price before adding the enclosure to your cart.
Open-Top Access and Ventilation
The open-top design provides convenient access from above and allows heat to escape freely. It is suited to equipment requiring regular servicing, additional ventilation or unrestricted overhead clearance.
This model does not include a lid or roof and should not be treated as a sealed or weatherproof equipment cover.
Front Access for Servicing
Hinged front access doors make it easier to reach pumps, filters, valves, pipes and service points. Depending on the selected finished width, the enclosure will be supplied with a single-door or double-door arrangement.
Slatted Back Panel Included
This open-top enclosure includes a slatted rear panel for screening on all four vertical sides. This is suitable where the rear of the enclosure remains visible or exposed.
If your installation requires an open back to accommodate rear pipework or installation against a wall, consider the with-lid enclosure, which offers a choice between open and slatted back configurations.
Premium Aluminium Slat Construction
The enclosure uses 65 × 16mm horizontal aluminium slats to create a clean architectural appearance. Choose the slat spacing that best suits the required balance of screening and airflow:
- 0mm gap: Maximum screening and privacy
- 5mm gap: A balance between screening and airflow
- 9mm gap: Increased ventilation and a lighter appearance
Technical Specifications
| Product type | Custom open-top aluminium equipment enclosure |
|---|---|
| Suitable applications | Pool pumps, filters, air-conditioning units, bins and outdoor equipment |
| Finished width | 600mm to 2,500mm |
| Finished depth | 500mm to 1,500mm |
| Slat profile | 65 × 16mm horizontal aluminium slats |
| Slat gap options | 0mm, 5mm or 9mm |
| Finish options | Nine powder-coated colours plus mill finish |
| Lid | Not included |
| Front access | Hinged single or double doors, determined by the selected width |
| Back panel | Slatted back included |
| Base fixing | Fixing plates extending approximately 25mm beyond each nominated side |
| Supply format | Custom cut and supplied flat packed |
| Assembly | Designed for assembly without welding |
Measuring Your Equipment Enclosure
Measure the total external space required around the equipment and allow adequate clearance for airflow, pipework, servicing and door operation.
- Width: Measure the required external left-to-right dimension
- Height: Measure from the floor to the top of the enclosure at the front
- Depth: Measure from the outside of the front posts to the outside of the rear posts
- Clearance: Allow sufficient room around equipment, pipes, valves and service points
Please note: The fixing plates extend approximately 25mm beyond the nominated width and depth on each side. Check the installation area for walls, fences, pipes and other obstructions before ordering.
When enclosing air-conditioning or mechanical equipment, follow the equipment manufacturer’s required airflow and servicing clearances.
Flat Packed for Convenient Transport
The enclosure is supplied flat packed, making it easier to transport through side access areas, courtyards and restricted installation spaces. All measurements should be carefully confirmed before ordering because the enclosure is custom cut according to the selected configuration.
Configure and Order Your Enclosure
Select the required colour, slat gap, finished dimensions and front access options using the configurator above. Once all required selections have been completed, the configured price will be displayed before the product is added to your cart.
- With-lid alternative: Custom Aluminium Pool Pump & Equipment Enclosure With Lift-Up Lid
