Description

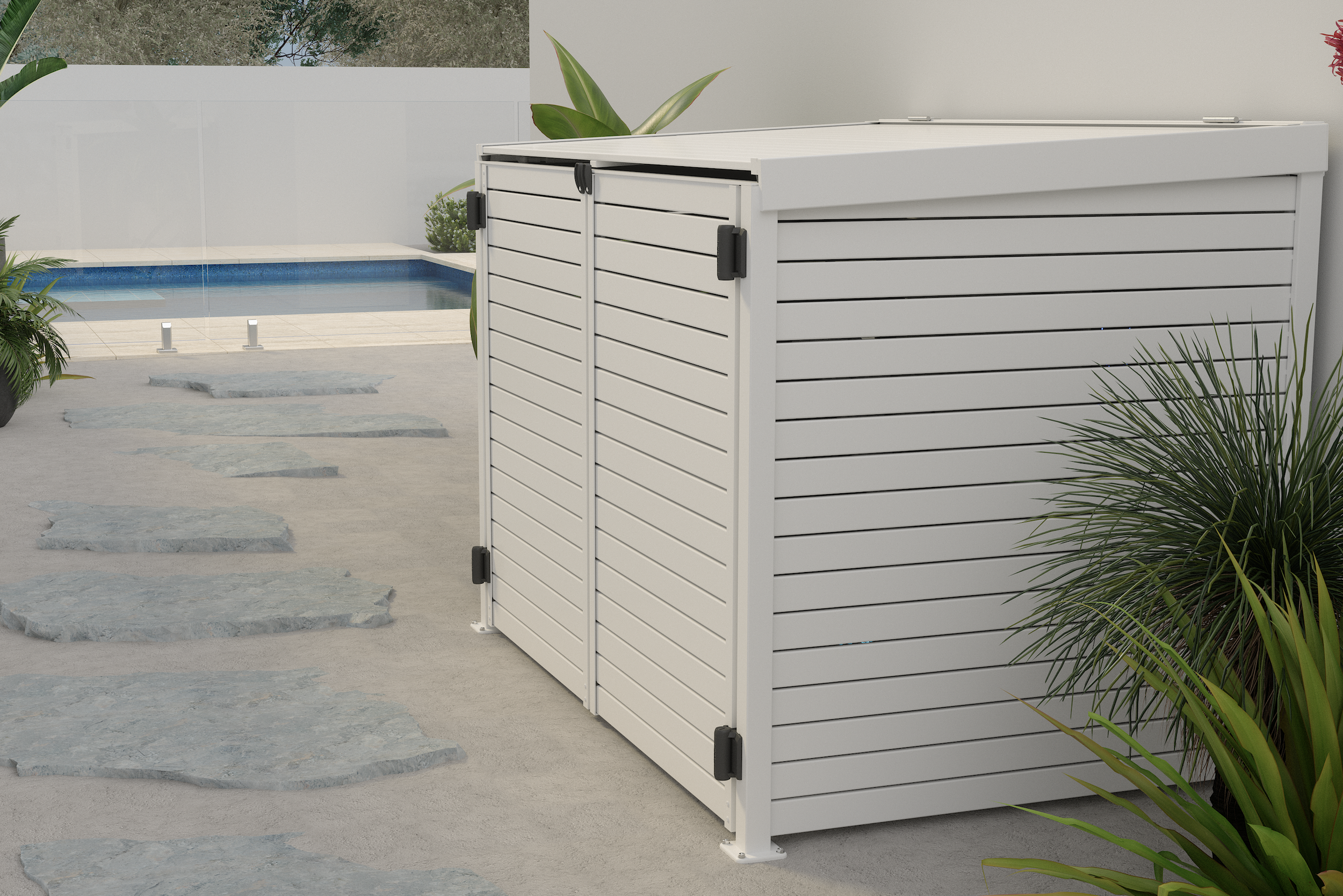

Custom Aluminium Equipment Enclosure With Lift-Up Lid
Create a cleaner, more organised outdoor area with a custom aluminium slat enclosure designed to conceal pool pumps, filters, air-conditioning units and other outdoor equipment.
This model includes hinged front access doors and a lift-up aluminium slat lid supported by stainless steel gas struts. Each enclosure is custom cut to your selected dimensions and supplied flat packed for convenient transport and assembly.
Key Benefits
- Custom cut to your selected dimensions
- Lift-up aluminium slat lid included
- Stainless steel gas struts assist opening and hold the lid open
- Hinged front doors provide convenient equipment access
- Choose an open back or slatted back
- 0mm, 5mm or 9mm slat gap options
- Available in nine powder-coated colours plus mill finish
- Supplied flat packed for easier transport and handling
- Designed for assembly without welding
Configure the Enclosure to Suit Your Installation
Use the product configurator to select the dimensions and options required for your installation:
- Colour: Choose from the available powder-coated finishes or mill finish
- Slat gap: Select 0mm, 5mm or 9mm spacing
- Finished width: Enter the required external finished width
- Back height: Select the required height at the rear of the lid
- Finished depth: Select the external front-to-back depth
- Back panel: Choose an open back or slatted back
- Front access: Available door layouts are determined by the selected width
The configured price updates according to the dimensions and options selected, allowing you to review the complete price before adding the enclosure to your cart.
Lift-Up Lid With Stainless Steel Gas Struts
The included lid is fitted with stainless steel gas struts to assist with smooth opening and help hold the lid in the raised position. This provides convenient access from above when inspecting or servicing the equipment inside.
The lid is designed with a forward fall to help rainwater drain away rather than collect on top. The enclosure should not, however, be treated as a fully sealed or waterproof structure.
Front Access for Servicing
Hinged front access doors make it easier to reach pumps, filters, valves, pipes and service points. Depending on the selected finished width, the enclosure will be supplied with a single-door or double-door arrangement.
The lift-up lid and front doors provide access from two directions, helping make future inspection and maintenance more convenient.
Open or Slatted Back Options
Choose an open back when installing the enclosure against a wall or fence, particularly where pipes, cables or services enter from behind the equipment.
Choose a slatted back where the rear of the enclosure will remain visible or exposed and a more complete screened appearance is preferred.
Premium Aluminium Slat Construction
The enclosure uses 65 × 16mm horizontal aluminium slats to create a clean architectural appearance. The available slat-spacing options allow you to balance privacy and ventilation:
- 0mm gap: Maximum screening and privacy
- 5mm gap: A balance between screening and airflow
- 9mm gap: Increased ventilation and a lighter appearance
Technical Specifications
| Product type | Custom aluminium equipment enclosure with lift-up lid |
|---|---|
| Suitable applications | Pool pumps, filters, air-conditioning units and outdoor equipment |
| Slat profile | 65 × 16mm horizontal aluminium slats |
| Slat gap options | 0mm, 5mm or 9mm |
| Finish options | Nine powder-coated colours plus mill finish |
| Lid | Lift-up aluminium slat lid included |
| Lid hardware | Stainless steel gas struts, hinges and bump stops |
| Front access | Hinged single or double doors, determined by the selected width |
| Back panel | Open back or slatted back |
| Base fixing | 100 × 100mm fixing plates |
| Supply format | Custom cut and supplied flat packed |
| Assembly | Designed for assembly without welding |
Measuring Your Equipment Enclosure
Measure the total external space required around the equipment and allow adequate clearance for airflow, pipework, servicing, door operation and lid movement.
- Width: Measure the required external left-to-right dimension
- Depth: Measure from the outside of the front posts to the outside of the rear posts
- Back height: Measure from the floor to the highest point at the rear of the lid
- Clearance: Allow sufficient space around equipment, pipes, valves and service points
Please note: The fixing plates extend approximately 25mm beyond the nominated width and depth on each side. Check the installation area for walls, fences, pipes and other obstructions before ordering.
When enclosing air-conditioning or mechanical equipment, follow the equipment manufacturer’s required airflow and servicing clearances.
Flat Packed for Convenient Transport
The enclosure is supplied flat packed, making it easier to transport through side access areas, courtyards and restricted installation spaces. All measurements should be carefully confirmed before ordering because the enclosure is custom cut according to the selected configuration.
Configure and Order Your Enclosure
Select the required colour, slat gap, finished dimensions, back panel and front access options using the configurator above. Once all required selections have been completed, the configured price will be displayed before the product is added to your cart.
- Open-top alternative: Custom Aluminium Equipment Enclosure Without Lid
