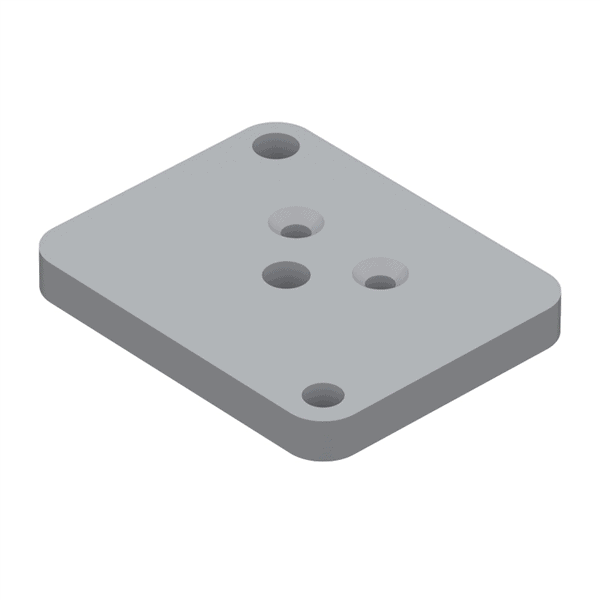

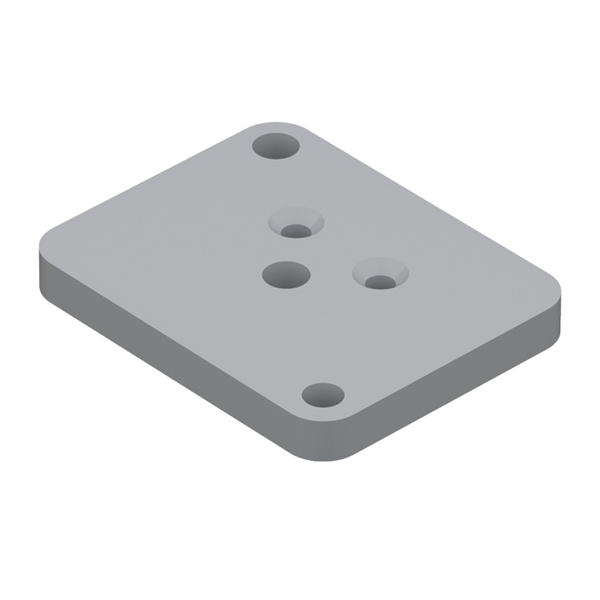

Pronto Louvre Side Frame Base Plate Set – 80 × 100mm
The Pronto Louvre Side Frame Base Plate Set provides a fixing plate for compatible 60 × 35mm side frame and non-machined frame profiles.
The 10mm-thick aluminium plate measures 80mm × 100mm and includes two Ø11mm fixing holes. Countersunk screws are supplied for attaching the plate to the compatible frame profile.
Key Features
- 80mm × 100mm plate size
- 10mm aluminium plate thickness
- Two Ø11mm fixing holes
- Countersunk profile-fixing holes
- Countersunk screws included
- Mill finish
- Can be fitted to the top or bottom of compatible profiles
Frame Mounting
Screw fix the plate to the end of a compatible side frame or non-machined frame using the supplied countersunk screws.
Depending on the installation design, the plate can be fitted to the bottom, the top or both ends of the profile.
Technical Specifications
| Plate Size | 80mm × 100mm |
|---|---|
| Thickness | 10mm |
| Fixing Holes | 2 × Ø11mm |
| Material | Aluminium |
| Finish | Mill finish |
| Compatibility | Compatible with Pronto 60 × 35mm side frames and non-machined frames |
Compatible Pronto Components
- Pronto Louvre Side Frames
- Pronto Non-Machined Louvre Frame
Important: Anchors for fixing the plate to the supporting structure are not stated as included. Select project-appropriate anchors separately.
