Description

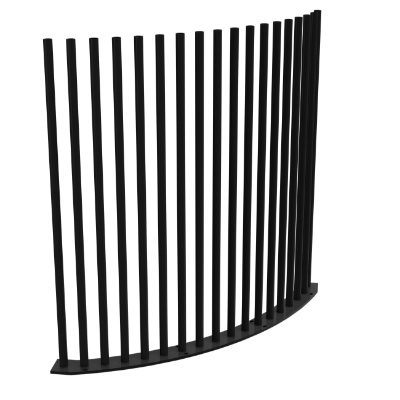

PIK Curved Panel V2 Base Plate delivers the same clean, slimline appearance as the original design, now with upgraded materials and improved manufacturing for better durability, improved weather resistance, and more reliable long-term performance.
Designed for modern fencing projects, PIK V2 keeps installation straightforward while introducing practical improvements to help protect the system once installed.
Key Features

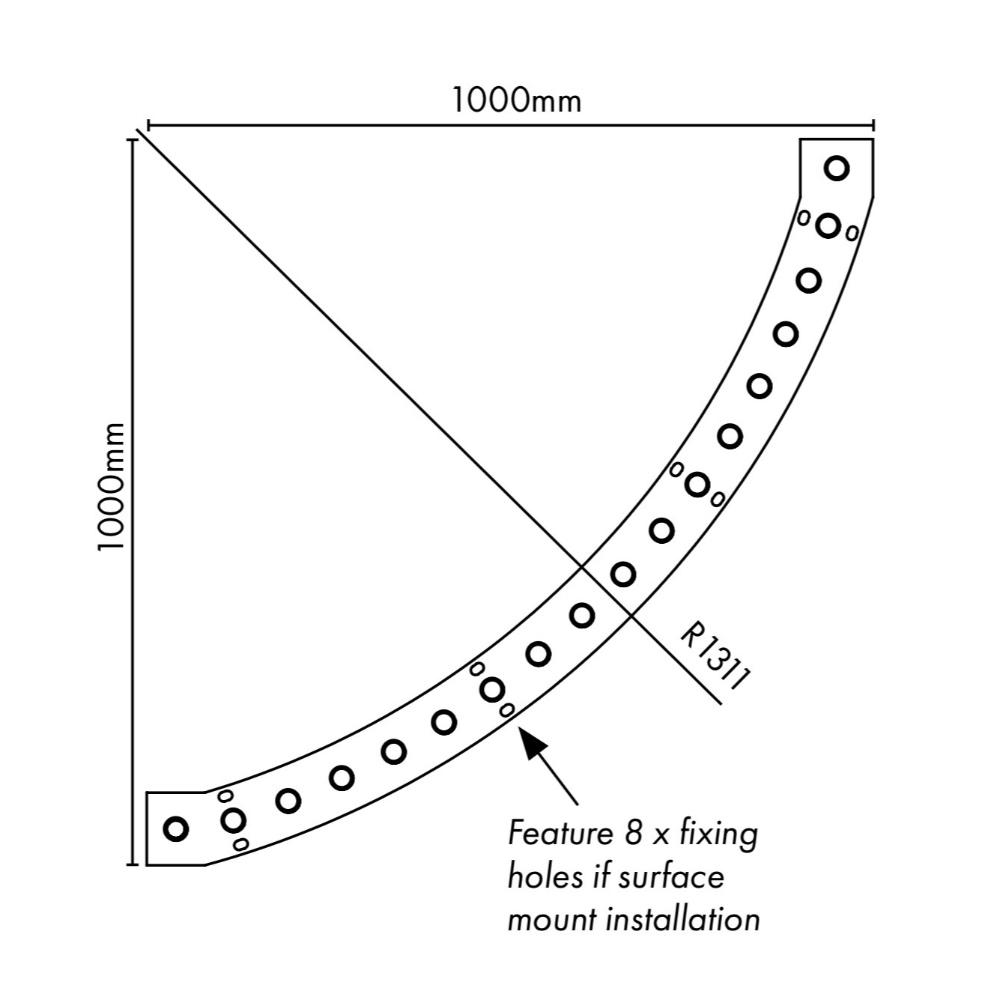

- Manufactured to the same specifications as the straight panel (refer to Pg 10)
- Straight panels butt neatly up to the curved panel for a clean and seamless installation
- Plinths/panels can be installed onto concrete or timber surfaces, or recessed for grout-in installation
- Each panel weighs 61kg
- Retains the same sleek dimensions and minimalist appearance as the original PIK design
- Upgraded materials and production methods for enhanced durability and weather resistance
Improved Base Plate Protection
A key upgrade in the PIK V2 design is the addition of a stick-on PVC panel beneath the base plate. This panel is designed to help protect fixing points and improve long-term resistance to the elements, while remaining hidden once installed.
Pool Fence Compliance
All PIK models, including PIK V2, comply with the requirements of AS1926.1 pool fencing standards, giving you confidence that the system is suitable for compliant pool fencing applications.
Installation Notes
Installation remains the same as the previous version, making PIK V2 an easy update for installers already familiar with the system. The pre-applied PVC panel on the underside of the base plate must remain in place during installation and will not be visible once fitted.
To help preserve the finish, avoid using harsh chemicals around newly installed fencing, including acid wash, as these may damage the protective coating.
Why PIK V2?
The original PIK V1 was withdrawn due to inconsistent supply, which made it difficult to meet project deadlines. PIK V2 was developed as an improved replacement, offering a more dependable supply solution along with enhanced durability and product performance.
