Hamptons Full Privacy PVC Sliding Gate – White – Custom Size
Hamptons Full Privacy PVC Sliding Gate – White – Custom Size - Image 2
Hamptons Full Privacy PVC Sliding Gate – White – Custom Size - Image 3

Hamptons Full Privacy PVC Sliding Gate – White – Custom Size

From $1,167.42 inc GSTStarting price: 1,000mm opening at 1,000mm high

Custom-cut full-privacy Hamptons sliding gate, supplied flat packed. Configure heights from 1,000–2,100mm and a gate-frame width up to 6,200mm. Posts, track, anchors and gate hardware included; motor and rack sold separately.

Configure your sliding gate

Enter the finished opening and overlaps shown below. The calculator applies the required manufacturing adjustment and prices the complete gate kit.

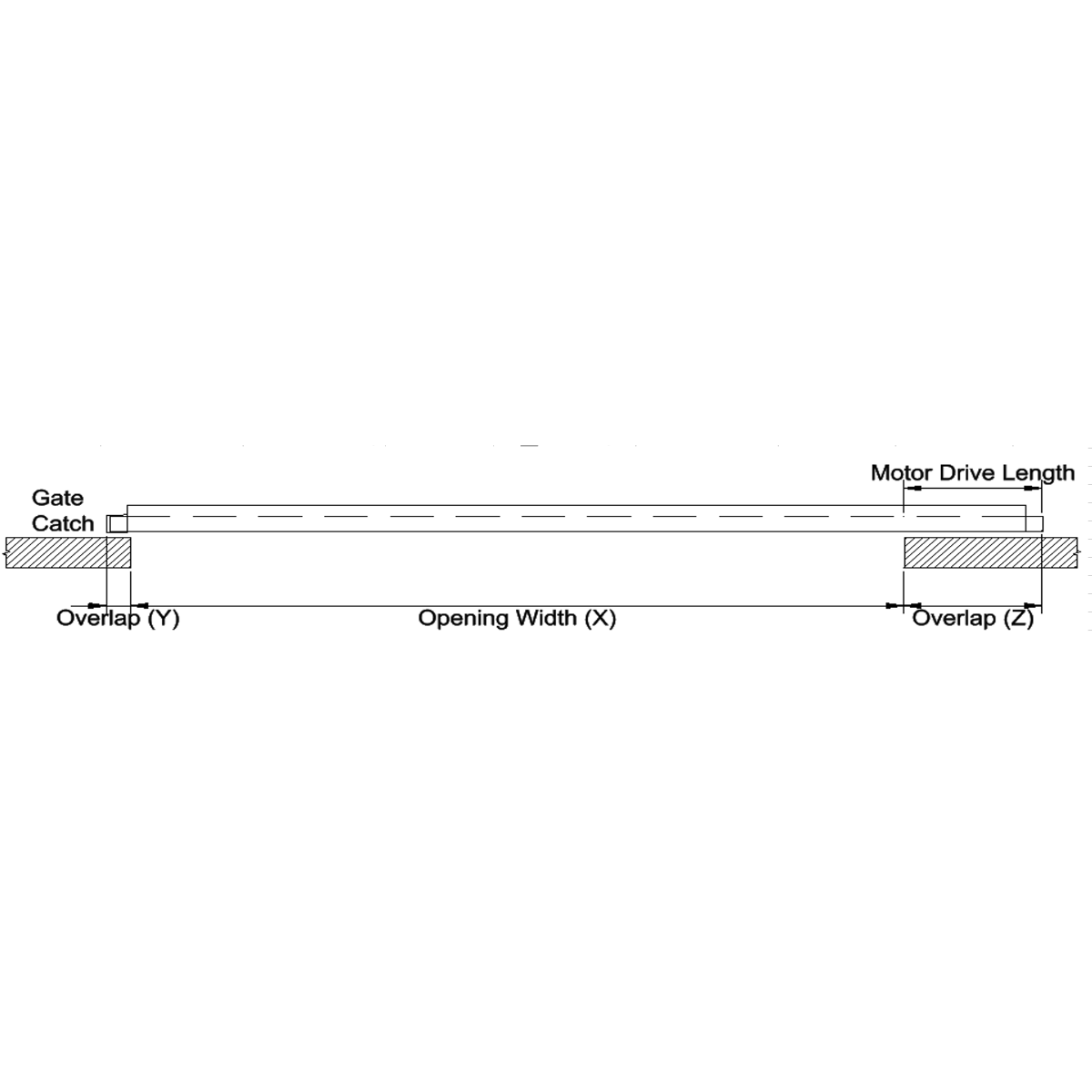

Sliding gate measurement diagram showing catch-side overlap Y, opening width X and motor-side overlap Z.
mm
Enter 1,000mm to 2,100mm. The gate includes 31mm ground clearance when used with the 16mm steel track.
mm
Enter at least 1,000mm. Opening width plus both overlaps must not exceed 6,200mm. For vehicle access, allow about 3,000mm or confirm with your installer.
mm
A minimum 50mm overlap is required at the gate catch.
mm
A minimum 400mm overlap is required for the rack mount. Opening width plus both overlaps must not exceed 6,200mm.

Please check before ordering: Confirm all measurements, clearances, installation requirements and delivery access. This gate is custom cut and supplied flat packed.

  • Virginia QLD
  • Bundamba QLD
  • Molendinar QLD
  • Newcastle NSW
  • Derrimut VIC
  • Dandenong South VIC
  • Kilburn SA
  • Jandakot WA

Description

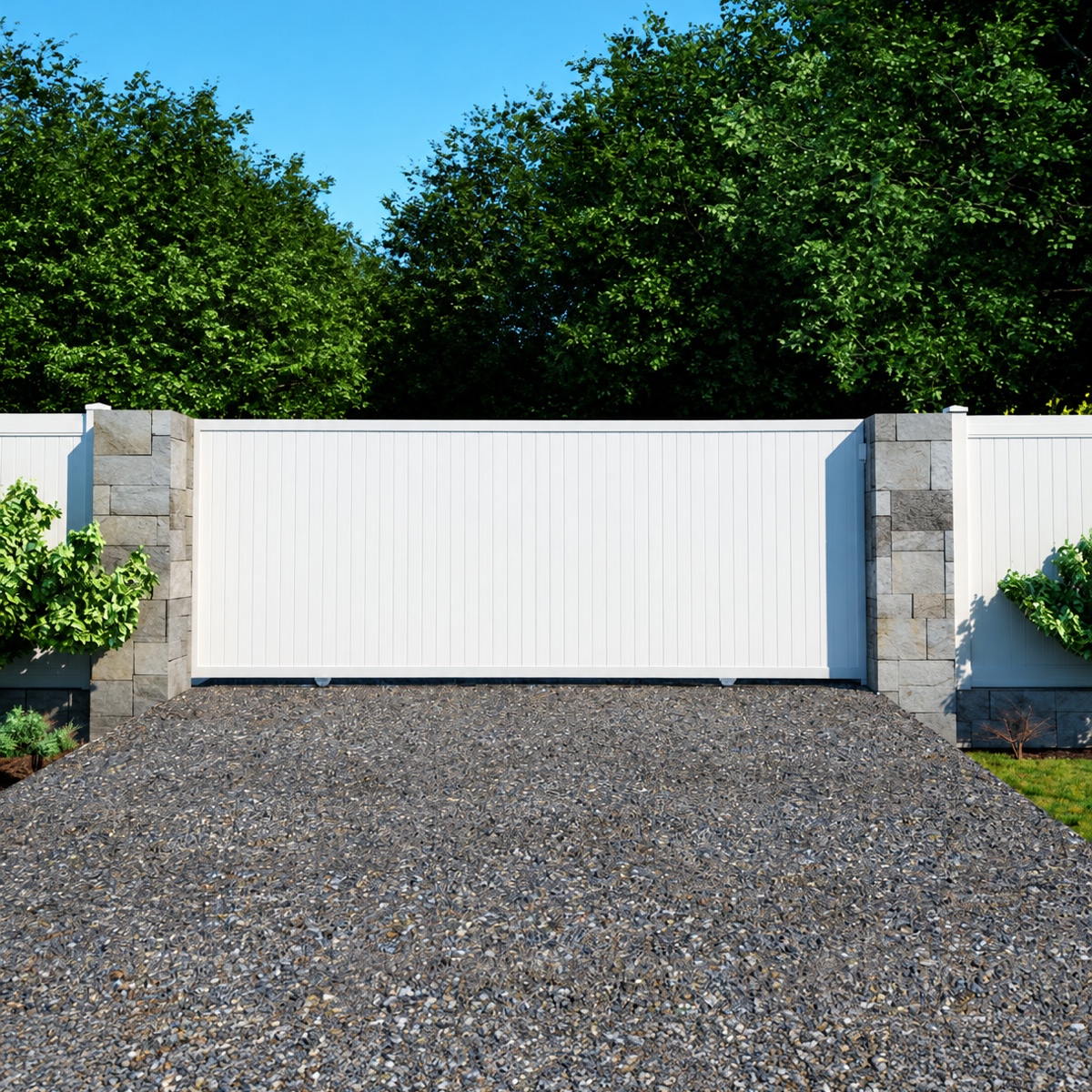

Custom Hamptons Full-Privacy Sliding Gate

Create a made-to-measure sliding gate that matches Auswide Frameless Hamptons full-privacy fencing. Enter the finished opening, catch-side overlap and motor-side overlap in the configurator. It calculates the required manufactured gate size, included track and configured price.

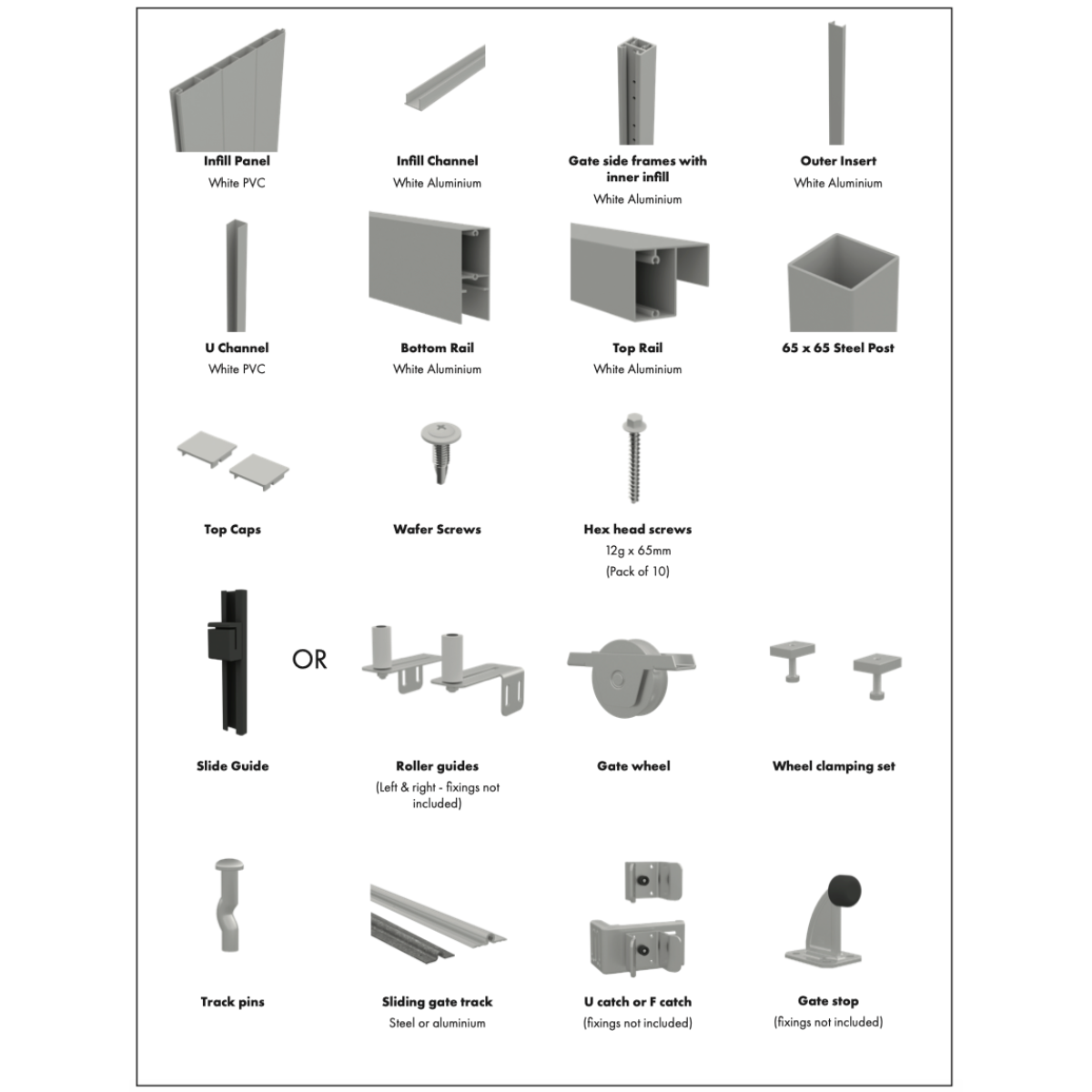

Gate kit

  • Custom-cut Pearl White aluminium sliding-gate frame with top and bottom rails
  • White UV-stabilised PVC full-privacy panels
  • 2 × 65 × 65mm steel posts with caps
  • Gate-frame caps, joiners and frame fasteners
  • 2 wheels with clamping sets
  • Automatically selected steel track and matching track anchors
  • Slide guide, U catch and gate stop
  • Components supplied flat packed for assembly

Measuring

  • Height from ground: enter 1,000mm to 2,100mm
  • Opening width X: measure the clear opening from post to post; minimum 1,000mm
  • Catch-side overlap Y: minimum 50mm at the gate catch
  • Motor-side overlap Z: minimum 400mm for the rack mount
  • Maximum gate-frame width: opening X + overlap Y + overlap Z must not exceed 6,200mm

For vehicle access, allow approximately 3,000mm of clear opening or confirm the required width with your installer.

The calculator allows for 31mm ground clearance with the included 16mm steel track. It automatically selects the required combination of 3m and 6m track lengths and matching anchors. Confirm the finished level and all clearances with your installer before ordering.

Motor extension plate

An optional 400–600mm motor extension plate can be added. This extension is additional to the manufactured gate-frame width. The gate motor and rack are not included.

Before ordering

Because this product is custom cut, returns are not accepted for customer measurement errors or change of mind. This does not affect your rights under the Australian Consumer Law.

Check the opening, overlaps, run-back space, guide arrangement, posts, track, catch, motor, rack, installation fixings and delivery access before placing the order. The motor, motor rack, installation labour and site-specific fixings are not included.

View the Hamptons sliding-gate fabrication instructions
