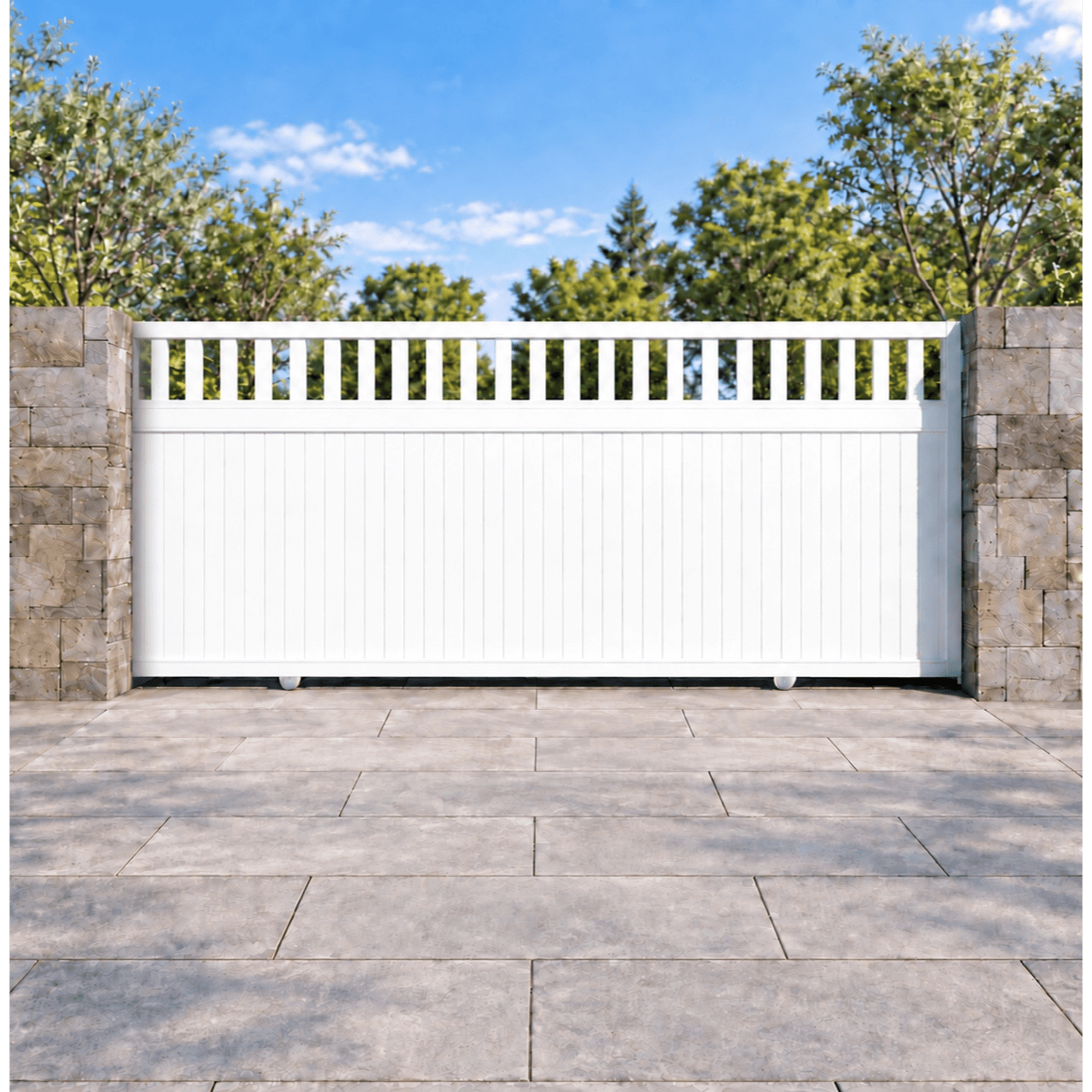

Hamptons Full Privacy + Slat Topper PVC Sliding Gate – White – Custom Size
Hamptons Full Privacy + Slat Topper PVC Sliding Gate – White – Custom Size - Image 2

Hamptons Full Privacy + Slat Topper PVC Sliding Gate – White – Custom Size

From $1,313.96 inc GSTStarting price: 1,000mm opening at 1,000mm high

Custom-cut Hamptons Combo sliding gate kit with full-privacy PVC and a slat topper. Includes two steel posts, sliding track and hardware. Up to 2,100mm high × 4,900mm wide; supplied flat packed. Motor and rack sold separately.

Configure your Combo sliding gate

Enter the finished opening and overlaps shown below. The calculator applies the required manufacturing adjustment and prices the complete full-privacy and slat-topper gate kit.

Sliding gate measurement diagram showing catch-side overlap Y, opening width X and motor-side overlap Z.
mm
Enter 1,000mm to 2,100mm. The gate includes 31mm ground clearance when used with the 16mm steel track.
mm
Enter at least 1,000mm. Opening width plus both overlaps must not exceed 4,900mm. For vehicle access, allow about 3,000mm or confirm with your installer.
mm
A minimum 50mm overlap is required at the gate catch.
mm
A minimum 400mm overlap is required for the rack mount. Opening width plus both overlaps must not exceed 4,900mm.

Please check before ordering: Confirm all measurements, clearances, installation requirements and delivery access. This Combo gate is custom cut and supplied flat packed. The motor and rack are not included.

Custom-made / cut-to-size product

Check your measurements and selections. No change-of-mind returns or exchanges for products correctly made to your confirmed specifications.

Read full custom-order information

Please check all measurements, colours, layouts and options before ordering. We do not accept change-of-mind returns or exchanges for products correctly made or cut to your confirmed specifications, including where you supplied incorrect measurements or selections.

Contact us immediately if you need to change or cancel your order. Changes are not possible once manufacture or cutting has started.

  • Virginia QLD
  • Bundamba QLD
  • Helensvale QLD
  • Molendinar QLD
  • Newcastle NSW
  • Derrimut VIC
  • Dandenong South VIC
  • Kilburn SA
  • Jandakot WA

Description

Custom Hamptons Combo Sliding Gate

Create a made-to-measure sliding gate that matches Auswide Frameless Hamptons full-privacy and slat-topper fencing. Enter the finished opening, catch-side overlap and motor-side overlap in the configurator. It calculates the required manufactured gate size and price.

Gate kit

  • Custom-cut Pearl White aluminium sliding-gate frame with top, centre and bottom rails
  • White UV-stabilised PVC full-privacy panels with a vertical slat topper
  • 2 × 65 × 65mm steel posts with caps
  • Gate-frame caps, joiners and frame fasteners
  • 2 wheels with clamping sets
  • Automatically selected steel track, matching track anchors, slide guide, U catch and gate stop
  • Components supplied flat packed for assembly

Measuring

  • Height from ground: enter 1,000mm to 2,100mm
  • Opening width X: measure the clear opening from post to post
  • Catch-side overlap Y: minimum 50mm at the gate catch
  • Motor-side overlap Z: minimum 400mm for the rack mount
  • Maximum gate-frame width: opening X + overlap Y + overlap Z must not exceed 4,900mm

The calculator allows for 31mm ground clearance with the included 16mm steel track. It automatically selects the required 3m and/or 6m track lengths and matching anchors. Confirm the finished level and all clearances with your installer before ordering.

Motor extension plate

An optional 400–600mm motor extension plate can be added. This extension is additional to the manufactured gate-frame width. The gate motor and rack are not included.

Before ordering

Because this product is custom cut, returns are not accepted for customer measurement errors or change of mind.

Check the opening, overlaps, run-back space, guide arrangement, posts, track, catch, motor, rack, installation fixings and delivery access before placing the order. The motor, motor rack, installation labour and site-specific fixings are not included.

View the Hamptons sliding-gate frame and hardware guide (the illustrated infill is the full-privacy version)
