Description
The Nexia 40mm x 40mm Aluminium Rail is designed for use as a horizontal support rail in Nexia aluminium batten installations. It provides a clean and practical rail solution for batten screens, fencing, panels and other architectural screening applications.
This rail is commonly used where Nexia battens are installed as part of a fence-style or panel-style layout. It can be used to support vertical batten arrangements and helps create a neat, structured finish for residential and commercial screening projects.
As part of the Nexia Aluminium Batten System, the 40mm x 40mm rail is designed to work with compatible Nexia brackets, battens and accessories. Shrouds are also available for post mounting, depending on the installation requirements.
Made from 6106-T6 aluminium, the rail is strong, lightweight, rust-free and suitable for outdoor use. Aluminium provides a low-maintenance alternative to timber or steel, with no ongoing painting, staining or rust concerns when using a finished powder coated or timber-look option.
The rail is supplied in 6100mm lengths and can be cut to size to suit your project requirements.
Available Finishes
- Black Satin
- Monument Matt
- Pearl White Gloss

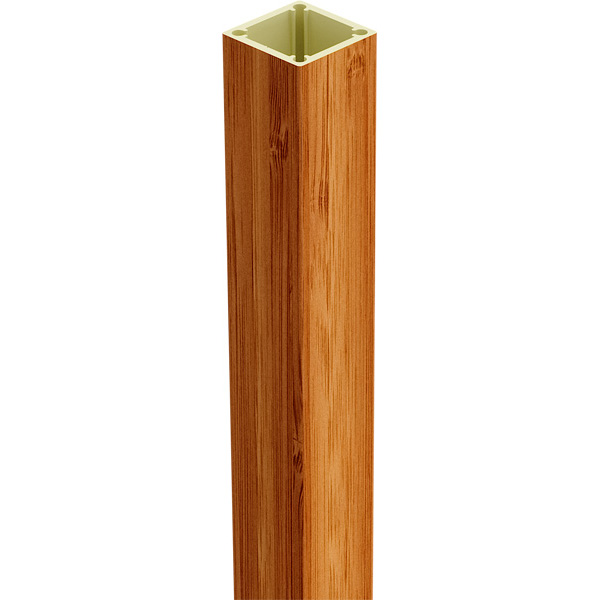

- Western Red Cedar Timber Look
- Alpine Ash Timber Look
- Mill Finish
Compatible Use
- Used as a horizontal rail for Nexia batten installations
- Suitable for fence-style and panel-style batten layouts
- Shrouds available for post mounting
Technical Specifications

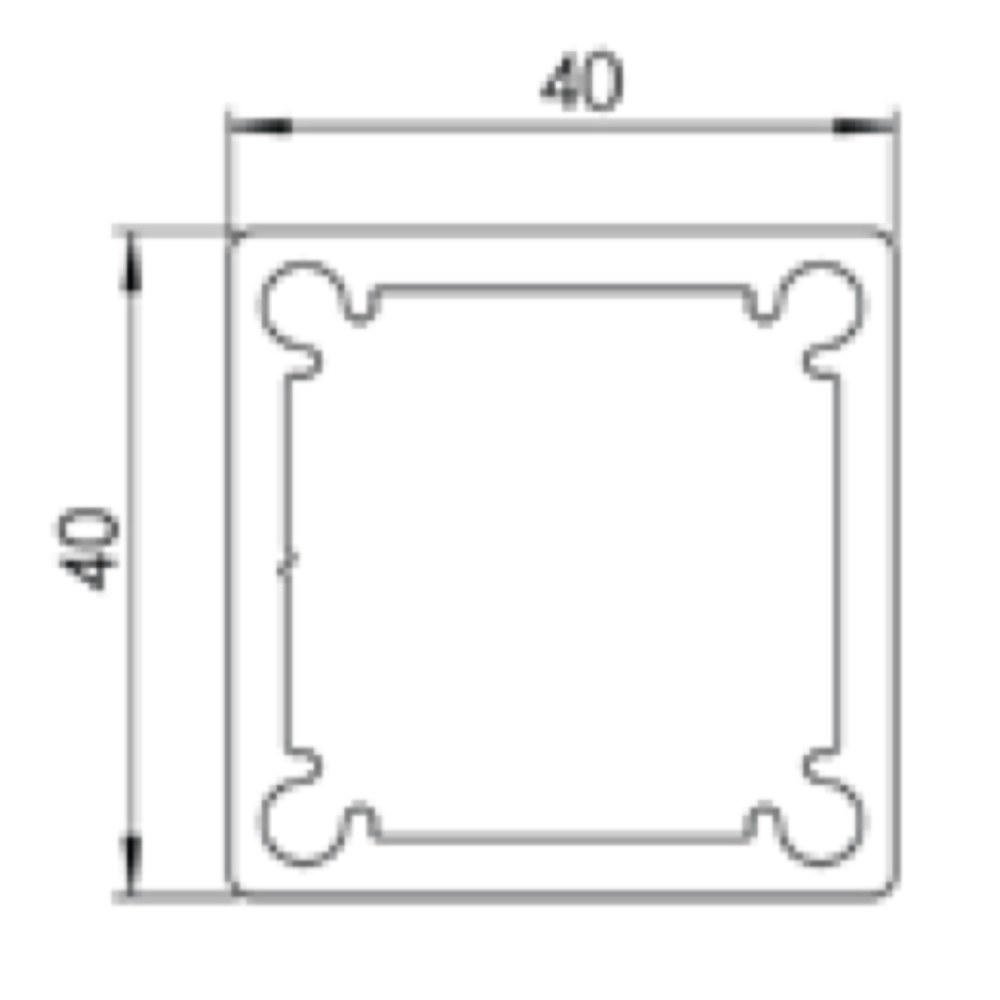

- Profile size: 40mm x 40mm
- Length: 6100mm
- Order code / SKU: NBAT-6100-RAIL
- Alloy: 6106-T6
- PP: 157
- AP: 157
- Ixx: 108.95 x 103 mm4
- Iyy: 108.95 x 103 mm4
- Wall thickness: 3.5mm
Suitable Applications
- Nexia batten fencing
- Horizontal support rails
- Vertical batten screen installations
- Privacy screen panels
- Garden screening
- Boundary fencing
- Architectural batten panels
- Residential and commercial screening projects
For Nexia batten installations requiring a clean and durable horizontal support rail, the Nexia 40mm x 40mm aluminium rail provides a strong, low-maintenance solution for modern fencing and screening applications.
