Pronto 9mm Spacing Slotted Louvre Midrail – 5800mm
The Pronto 9mm Spacing Slotted Louvre Midrail provides intermediate support within wider fixed louvre panel assemblies.

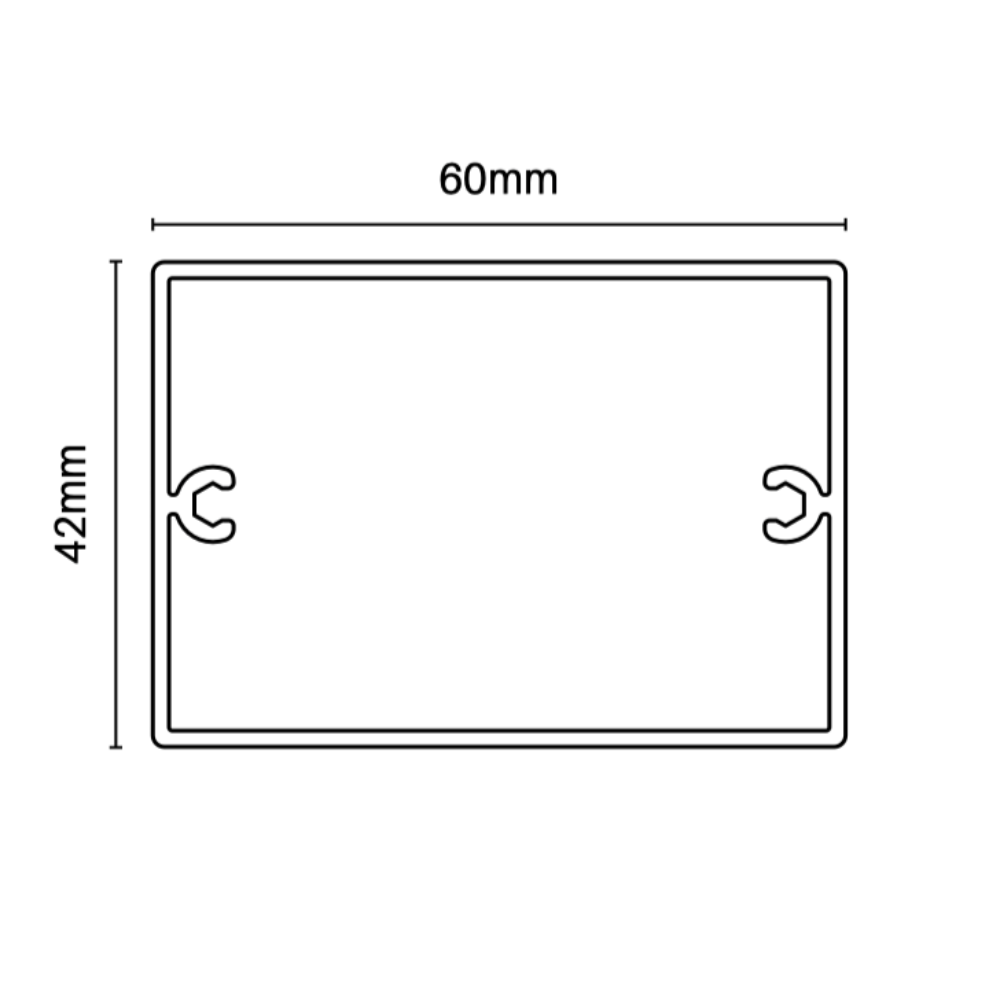

The one-piece 60mm × 42mm profile is slotted on both sides, allowing it to slide along the louvre blades to the required position before each blade is secured to the midrail.
Key Features
- 60mm × 42mm aluminium profile
- 5800mm overall length
- 132 pre-slotted positions across both sides
- Slots set at 30 degrees
- 9mm Spacing blade arrangement
- Two Ø3.7mm screw flutes
- 6063-T5 aluminium alloy
- Mill finish
- Welding or riveting required
Supporting Wider Panels
Position midrails so unsupported louvre blade spans do not exceed 1500mm. Multiple midrails may be required on wider panels.
Slide the midrail along the blades to the required position, then weld or rivet every blade to the midrail. The catalogue recommends combining the midrail with non-machined top and bottom frames to create a fully framed panel.
Technical Specifications
| Profile | 60mm × 42mm |
|---|---|
| Length | 5800mm |
| Spacing | 9mm Spacing |
| Slotted Positions | 132 total across both sides |
| Slot Angle | 30 degrees |
| Alloy | 6063-T5 |
| Finish | Mill finish |
| Screw Flutes | 2 × Ø3.7mm |
| PP / AP | 203 / 203 |
Compatible Pronto Components
- Pronto 88mm Aluminium Louvre Blade
- Pronto 9mm Spacing Louvre Side Frames
- Pronto Non-Machined Louvre Frame
- Pronto Centre Support Rail / Midrail Caps
Important: Use this midrail only with the matching 9mm spacing frame configuration.
Complete all cutting and fabrication in mill finish before applying the selected powder coat finish.
